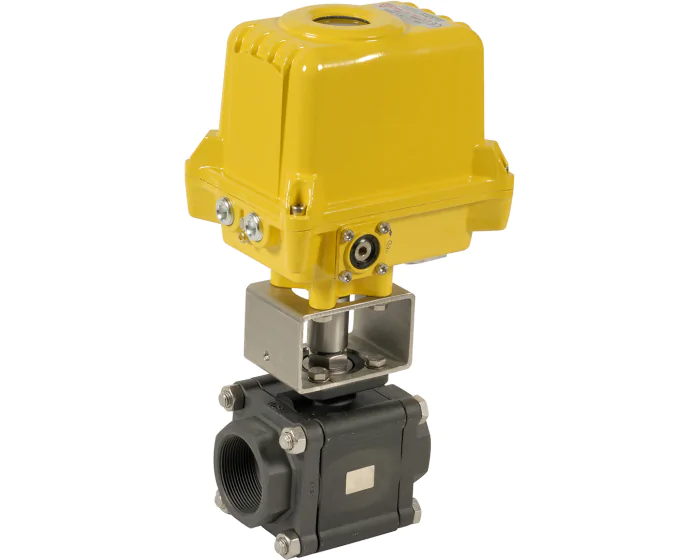

The 702 3-piece body ball valve has a WCB steel body, stainless steel ball and PTFE/carbon seats. It is actuated with an ATEX electric actuator. PS: 100 bar, TS: 220°C. Threaded G or welding BW.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| DN | DN8 - 1/4'' |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 64.8 |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex d |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | Graphite |
| PS (bar) | 137 |
| Power (W) | 6 |
| Connections | BSP FF |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA05-X |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE-Carbon |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| Voltage | 230 V AC |
| TS max (°C) | 220 |
| TS min (°C) | -20 |
| Ball valve design | 3-piece body |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF DN8 - 1/4'' | 271540023310 | S1005519 |
€774.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body BSP FF DN10 - 3/8'' | 271541023310 | S1005520 |
€774.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' BSP FF | 271542023310 | S1005521 |
€784.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' BSP FF | 271543023310 | S1005522 |
€793.07
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' BSP FF | 271544023310 | S1005523 |
€853.94
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 BSP FF | 271545023310 | S1005524 |
€840.19
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 BSP FF | 271546023310 | S1005525 |
€875.16
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' BSP FF | 271547023310 | S1005526 |
€1,129.76
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN8 - 1/4'' Welding BW | 271560023310 | S1005527 |
€774.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body Welding BW DN10 - 3/8'' | 271561023310 | S1005528 |
€774.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Welding BW | 271562023310 | S1005529 |
€784.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Welding BW | 271563023310 | S1005530 |
€793.07
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Welding BW | 271564023310 | S1005531 |
€853.94
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Welding BW | 271565023310 | S1005532 |
€840.19
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Welding BW | 271566023310 | S1005533 |
€875.16
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Welding BW | 271567023310 | S1005534 |
€1,129.76
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN8 - 1/4'' Welding SW | 271580023310 | S1005535 |
€774.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN10 - 3/8'' Welding SW | 271581023310 | S1005536 |
€774.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Welding SW | 271582023310 | S1005537 |
€784.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Welding SW | 271583023310 | S1005538 |
€793.07
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Welding SW | 271584023310 | S1005539 |
€853.94
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Welding SW | 271585023310 | S1005540 |
€840.19
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Welding SW | 271586023310 | S1005541 |
€875.16
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Welding SW | 271587023310 | S1005542 |
€1,129.76
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF DN8 - 1/4'' | 271590023310 | S1005543 |
€774.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body NPT FF DN10 - 3/8'' | 271591023310 | S1005544 |
€774.39
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' NPT FF | 271592023310 | S1005545 |
€784.99
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' NPT FF | 271593023310 | S1005546 |
€793.07
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' NPT FF | 271594023310 | S1005547 |
€853.94
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 NPT FF | 271595023310 | S1005548 |
€840.19
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 NPT FF | 271596023310 | S1005549 |
€875.16
(excl. btw)
|
add to cart |
| BSP FF Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' NPT FF | 271597023310 | S1005550 |
€1,129.76
(excl. btw)
|
add to cart |
